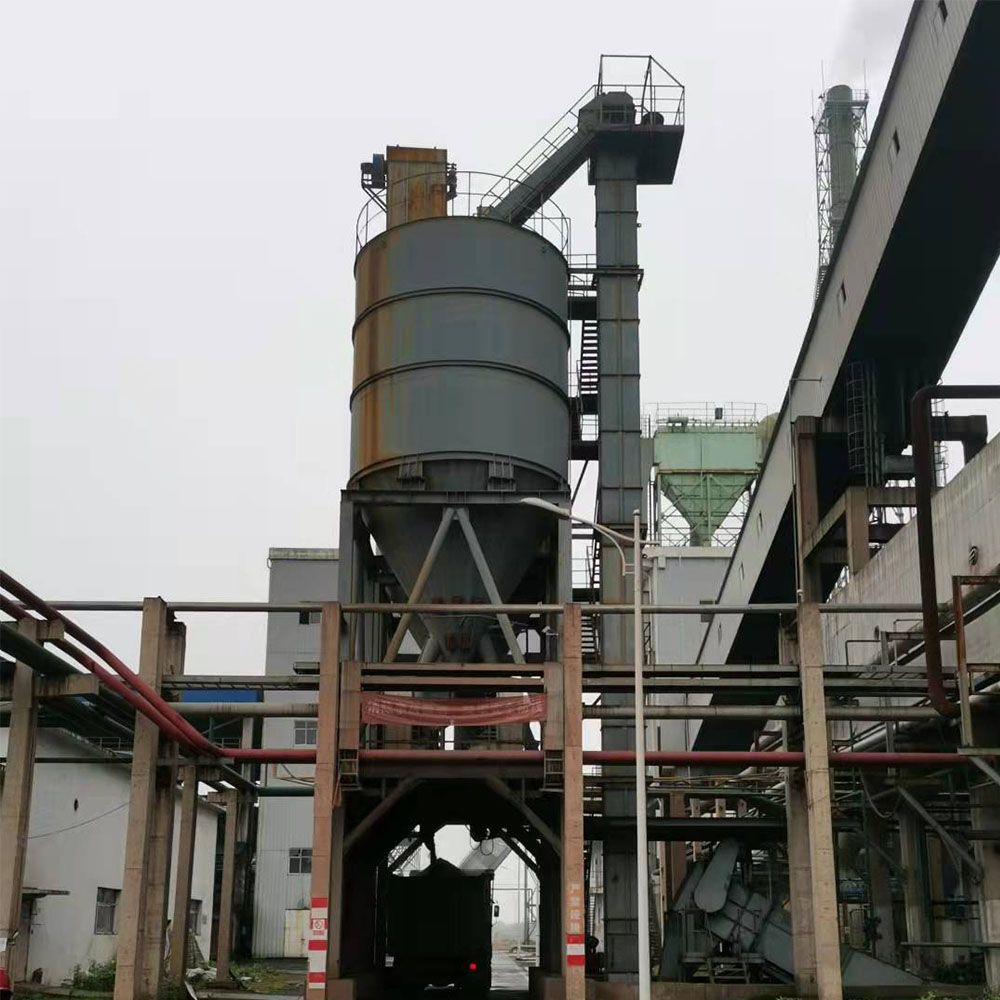

High-efficiency vertical conveying equipment using buckets attached to belt or chain. TH, TD, NE series for grain, cement, coal, fertilizer, mineral and chemical powder lifting with heights up to 60m.
| Model Series | TH (deep bucket / high-efficiency), TD (belt type), NE (chain type / heavy-duty) |
|---|---|
| Conveying Capacity | 4 – 800 m³/h (material-dependent) |
| Lifting Height | Up to 60 m (custom designs available) |
| Bucket Width | 160, 200, 250, 315, 400, 500, 630, 800 mm |
| Drive Type | Belt drive (TD series); chain drive (TH, NE series) |
| Bucket Material | Carbon steel; stainless steel; wear-resistant steel; HDPE (grain grade) |
| Casing | Welded steel with bolted access panels; explosion-proof vents (grain option) |
| Discharge Type | Centrifugal (high-speed); gravity (low-speed / continuous) |
| Safety Features | Backstop device; belt misalignment switch; overflow sensor; explosion vents |
| Certification | ISO 9001; National High-Tech Enterprise; "Hubei Boutique" Certified |
Precision-balanced head and tail pulleys/sprockets with dynamic balancing ensure smooth operation with minimal vibration, even at high lifting speeds and heights.
Optimized bucket design and discharge trajectory engineering minimize material degradation during loading and discharge. Ideal for grain, seeds, and friable materials.
Fully enclosed casing with bolted access doors prevents dust emissions and protects conveyed material from external contamination. Complies with workplace safety regulations.
Built-in overflow sensors detect material backup and trigger automatic shutdown. Protects equipment from damage and prevents spillage in continuous operation.
Large bolted access doors at multiple levels along the casing allow quick bucket inspection, replacement, and internal cleaning without major disassembly.
ATEX-compliant configurations available for grain, flour, and combustible dust applications. Includes explosion vents, anti-static belts, and spark detection systems.
High-capacity grain lifting for silo filling, ship loading, and inter-process transfer. Gentle handling preserves grain quality with minimal kernel damage.
Vertical transport of raw meal, cement powder, and clinker between grinding, blending, and storage stages. Dust-tight sealed housing for clean operation.
Coal and coke lifting for boiler feed systems, stockpiles, and processing circuits. Heavy-duty chain drive options for abrasive coal handling.
NPK, urea, phosphate, and compound fertilizer lifting. Corrosion-resistant bucket and casing options for aggressive chemical environments.
Ore, sand, and aggregate lifting in mining and mineral processing circuits. Wear-resistant buckets and reinforced chain drives for abrasive materials.
Safe vertical conveying of chemical powders with sealed, dust-tight design. Stainless steel options for food-grade and corrosive chemical applications.
A bucket elevator is vertical conveying equipment that lifts bulk solid materials — grain, cement, coal, fertilizer, minerals, and chemical powders — using buckets attached to a belt or chain. It is used to raise material efficiently to silos, bins, or the next process stage.
TH uses a chain with deep (high-efficiency) buckets; TD uses a belt drive; NE is a heavy-duty chain-type elevator for abrasive or high-capacity duty. The right choice depends on your material, capacity, and lifting height.
Capacity ranges from 4 to 800 m³/h and lifting heights reach up to 60 m, with custom designs available for greater heights.
Yes. ATEX-compliant options include explosion relief vents, anti-static belts, spark detection, and sealed housings for grain, flour, and other combustible dusts.
Standard safety features include a backstop device (anti-rollback), belt misalignment switch, overflow sensor with automatic shutdown, and optional explosion relief vents.
Consider material type (abrasive, wet, or friable), required capacity, lifting height, and discharge method (centrifugal vs gravity). Share these details with our engineers for a tailored proposal.
